CCA与纯铜对比：Cost Effective分析
CCA vs Copper: Cost-Effectiveness Analysis
1. Introduction
CCA（CCA）作为纯铜的替代材料，在许多Applications中提供显著的成本优势。
2. Electrical Performance
3. Mechanical Properties
4. WeightCharacteristics
CCA的Density仅为纯铜的40%，在Weight敏感Applications中具有显著优势。
5. CostAnalysis
Create Cost Effective Analysis Diagram
MEDIA TODO6. Application Selection
7. Conclusion
CCA在敏感、Weight敏感和频Applications中是的优秀替代品。
FAQ
What is Copper-Clad Aluminum (CCA)?
CCA is a bimetallic conductor consisting of an aluminum core with a copper outer layer, manufactured through cladding and welding processes. It combines the lightweight properties of aluminum with the conductivity and connectivity advantages of copper.
How does CCA's conductivity compare to pure copper?

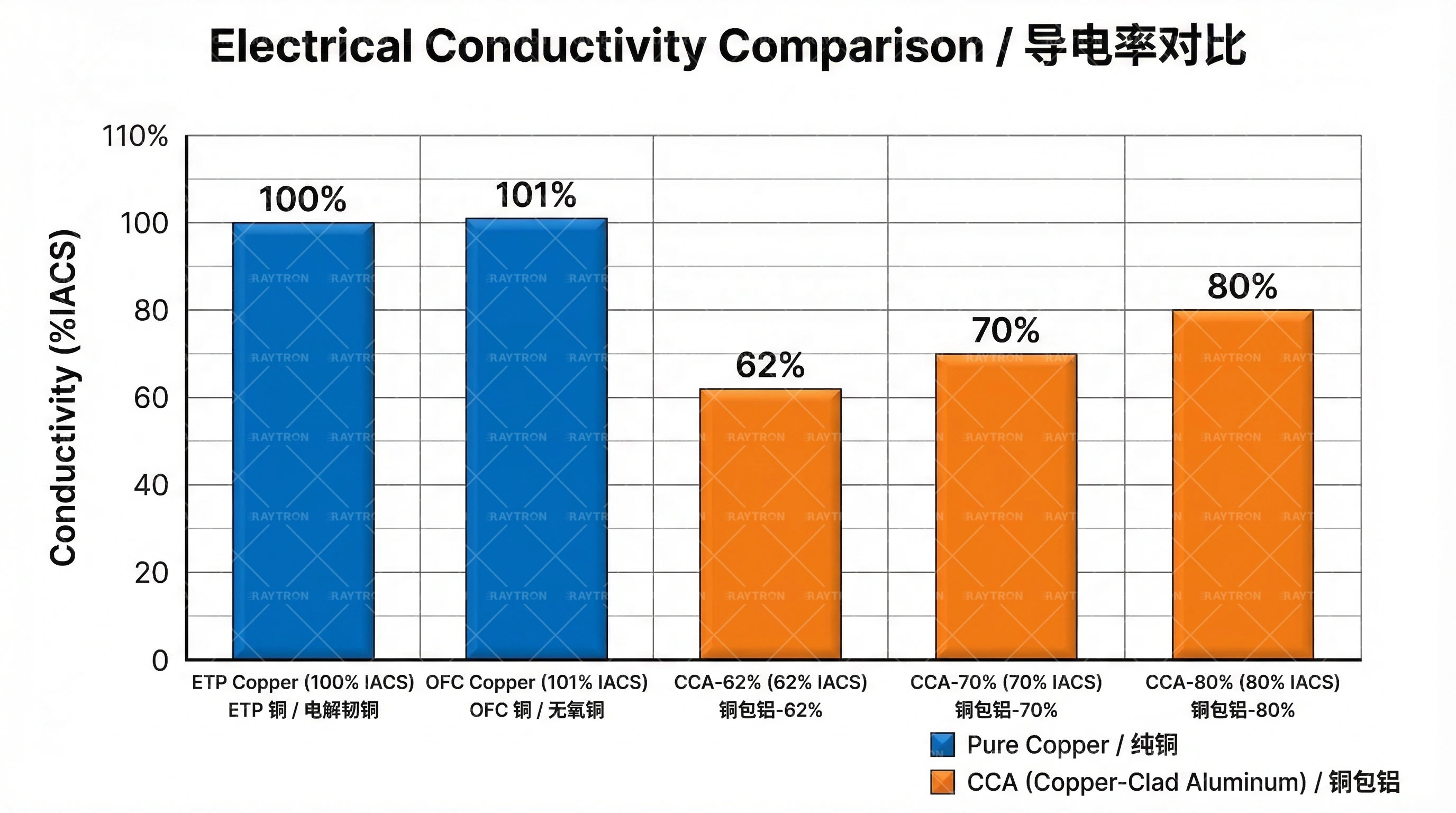

CCA typically achieves 62-68% IACS conductivity compared to pure copper's 100% IACS. While lower, this is sufficient for many applications including building wires, coaxial cables, and high-frequency applications where skin effect predominates.
Is CCA suitable for building wiring applications?
Yes, CCA is widely used in building wiring for applications where its conductivity is adequate. It offers significant cost and weight advantages. However, for high-current applications or where maximum conductivity is critical, pure copper may still be preferred.
What are the connection reliability concerns with CCA?
CCA provides better connection reliability than pure aluminum due to its copper surface, which eliminates the oxidation and galvanic corrosion issues associated with aluminum connections. Standard copper connectors can be used with proper installation practices.
Why is CCA particularly effective for high-frequency applications?
At high frequencies, current flows primarily on the conductor surface due to the skin effect. Since CCA has a copper outer layer, it performs equivalently to solid copper in RF applications while offering significant cost and weight advantages.
图表

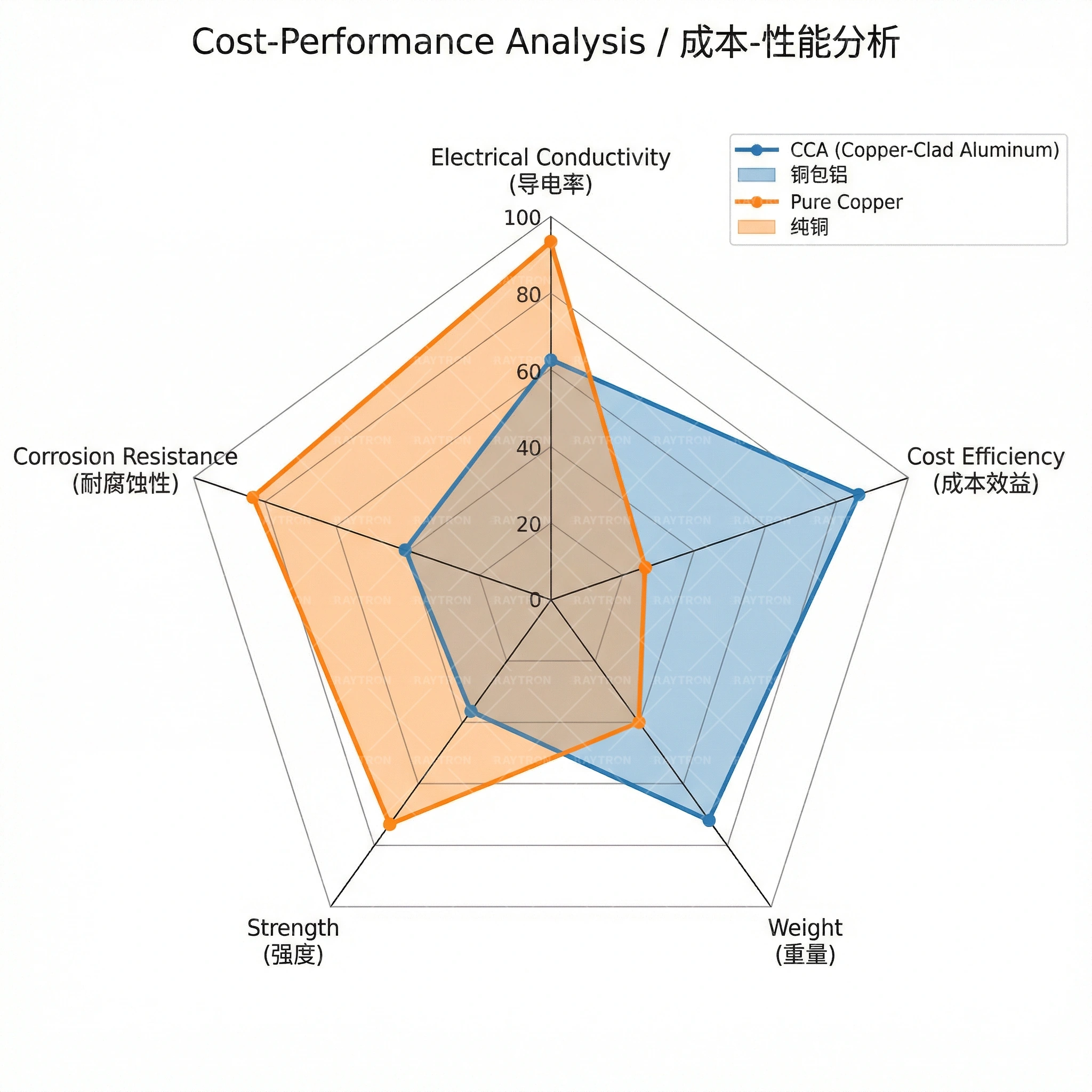

CCA vs PureCopper PerformanceRadar Diagramvs
Create Conductivity vs Temperature Variation Curve
Create Cost Effective Analysis Diagram
表格
| Property | CCA-15% | PureCopper |
|---|---|---|
| Conductivity (% IACS) | 62-68 | 100 |
| ResistanceRate (μΩ·cm) | 2.5-2.8 | 1.72 |
| TemperatureCoefficient (/°C) | 0.0040 | 0.00393 |
| Property | CCA-15% | PureCopper |
|---|---|---|
| Tensile Strength (MPa) | 150-200 | 220-250 |
| ElongationRate (%) | 15-25 | 30-45 |
| Density (g/cm³) | 3.64 | 8.96 |
| Factor | CCA | PureCopper |
|---|---|---|
| MaterialCost | $0.40/kgEquivalent | $1.00/kg |
| Weight Savings | 60% | - |
| Copper材 Savings | 85% | - |
| Applications | Recommended Material | Reason |
|---|---|---|
| Building WiringWire | CCA | Cost Effective |
| HighFrequency Cable | CCA | Skin Effect Effect |
| LargeCurrent母Wire | PureCopper | Conductivity Requirements |
| GroundingConductor | CCA/PureCopper | View Environment而定 |
参考文献
- ASTM B566: Copper-Clad Aluminum Wire ASTM (2020)
- IEC 62602: Copper-clad aluminum for electrical purposes IEC (2022)
